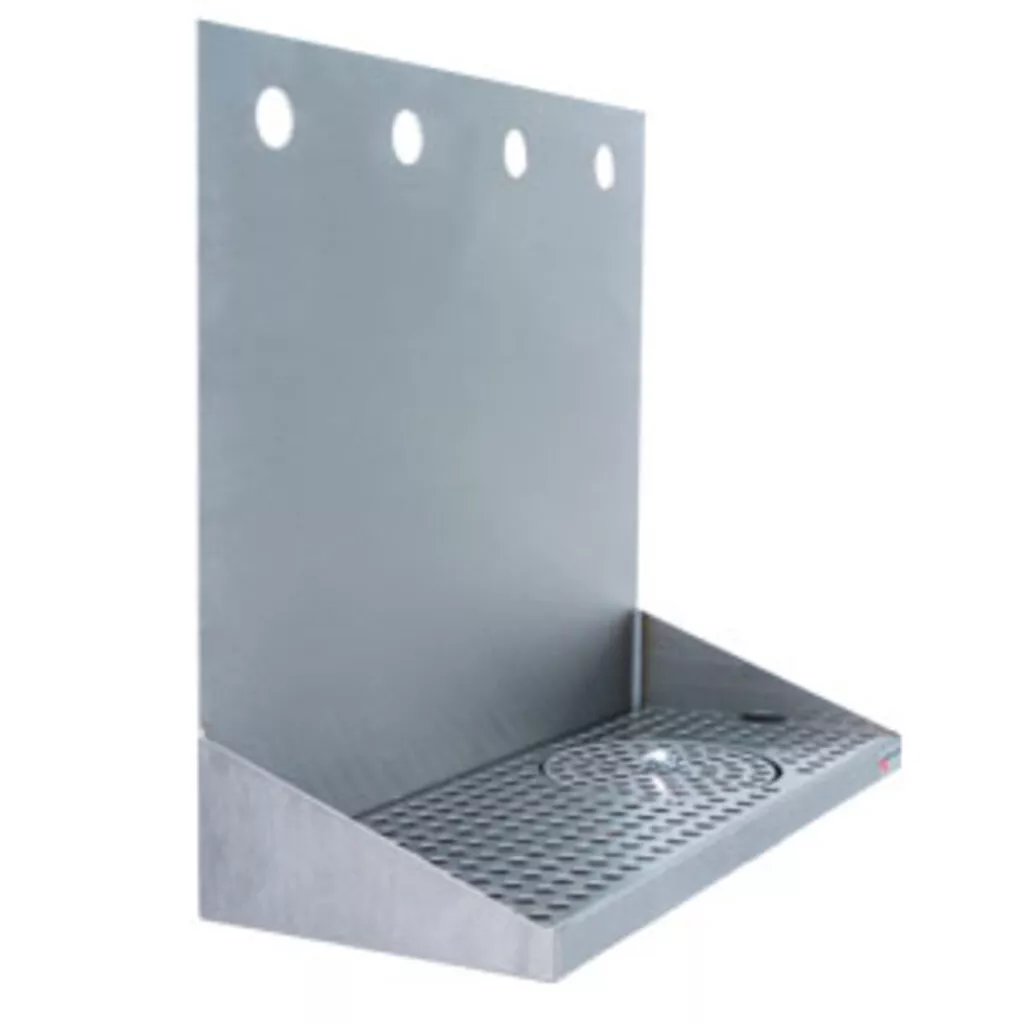

Four pre-drilled holes to mount shanks through 14″ high backsplash.
Features
- Premium wall mounted drip tray
- Robust 18 gauge stainless steel construction
- Welded corners, finished smooth for safety and appearance
- Fast draining, precision perforated screen
- Center mounted drain, 1-3/4″ x 1/2″ N.P.T. drain pipe perfect for plumbing with PVC directly to a drain
Rinser Water Inlet Installation
- Always check local plumbing codes first
- Install in-line water regulator set at 15 PSI from the street water supply (no greater, perfect operating pressure)
- Install in-line one way check valve from the street water supply (prevents pressure drop which can cause leaking)
- Install in-line shut-off for the rinser system from the street water supply (this must be turned off nightly)
- If teed into soda system make sure system can handle the increased water demand. Have plumber install a 45° 1/2″ O.D. barb for the drains if line is not hard plumbed into the system
- Install a shut-off for the water supply if line is not hard plumbed into the system
Note: If intended for use with a vinyl drain hose, order item DDN drain nipple separately.
