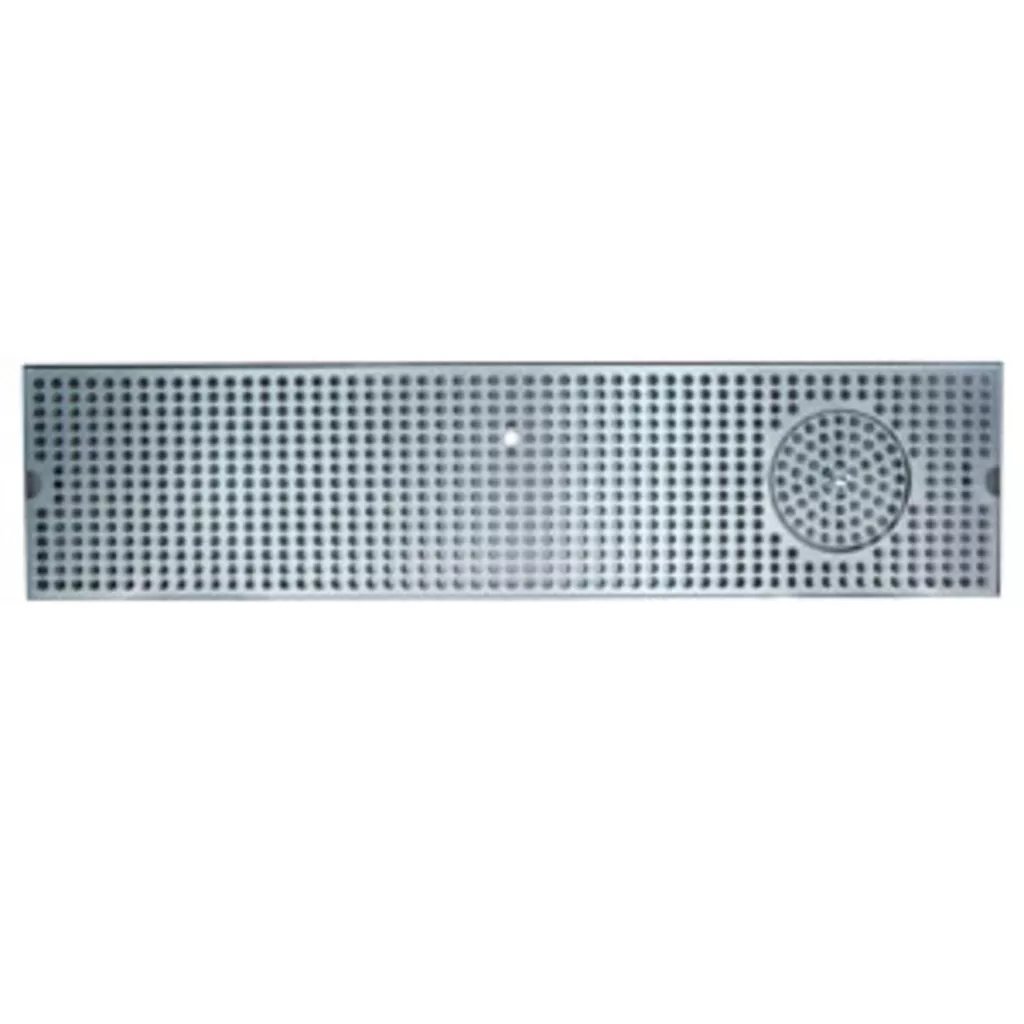

Beer Draft Drip Tray with Drain and Glass Rinser Features
- Easy installation: simply drill holes for beer glass rinser and drain
- Robust 18 gauge stainless steel construction
- Welded corners, finished smooth for safety and appearance
- Fast draining, precision louvered screen
- Center-mounted solid brass drain
Rinser Water Inlet Installation:
- Always check local plumbing codes first
- Install in—line water regulator set at 15 PSI from the street water supply (no greater, perfect operating pressure)
- Install in—line one way check valve from the street water supply (prevents pressure drop which can cause leaking)
- Install in—line shut-off for the rinser system from the street water supply (this must be turned off nightly)
- If teed into soda system make sure system can handle the increased water demand. Have plumber install a 45° 1/2″ O.D. barb for the drains if line is not hard plumbed into the system
