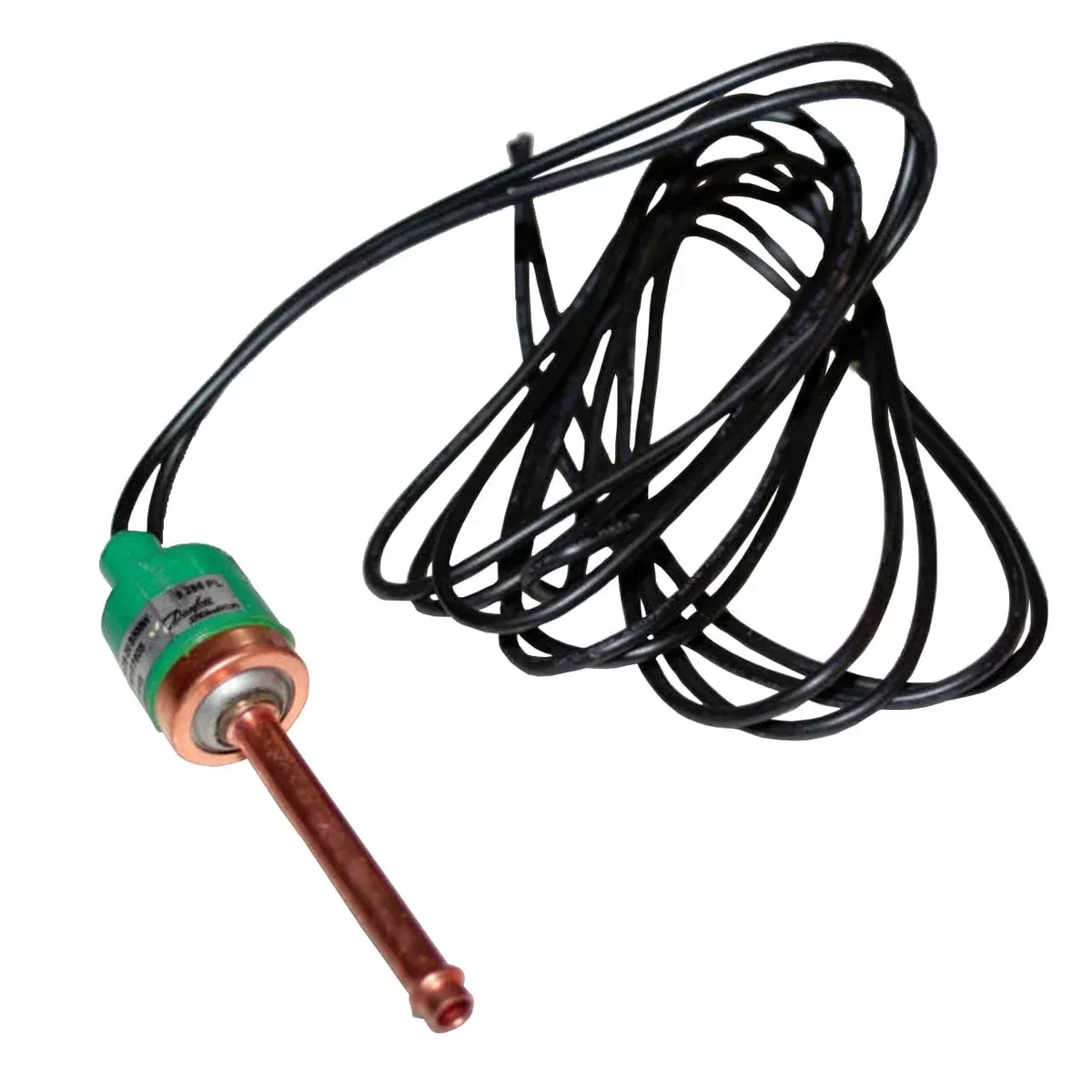

Danfoss ACB cartridge pressure switch for glycol cooling systems.
OVERSTOCK CLEARANCE!
Contact function: SPST(NC), Pressure connection type: Solder, ODM, Pressure connection size [mm]: 6.35, Electrical connection: Cable
Features:
| Medium temperature range [°C] [Max] | 135 °C |
| Medium temperature range [°C] [Min] | -55 °C |
| Medium temperature range [°F] [Max] | 275 °F |
| Medium temperature range [°F] [Min] | -70 °F |
| Mounting | vertical +/- 45º |
| Packing format | Industrial pack |
| Pressure connection notes | Cu-tube (tip=3mm) |
| Pressure connection size | 1/4 in |
| Pressure connection size [mm] | 6.35 mm |
| Pressure connection type | Solder, ODM |
| Pressure range category | High pressure |
| Product family name | ACB |
| Product Group | Switches and thermostats |
| Product group | Switches and thermostats |
| Product name | Cartridge pressure switch |
| Quantity per packing format | 20 pc |
| Refrigerants | R125a R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A |
| Reset function | Auto |
| Specification key | ACB-2UC173MW |
| Supply cable size [AWG] | 18 AWG |
| Type | ACB |
| Wire colour | Black |
