Upgrade Your Beverage Dispensing System with the KG1/6VP Glycol Chiller

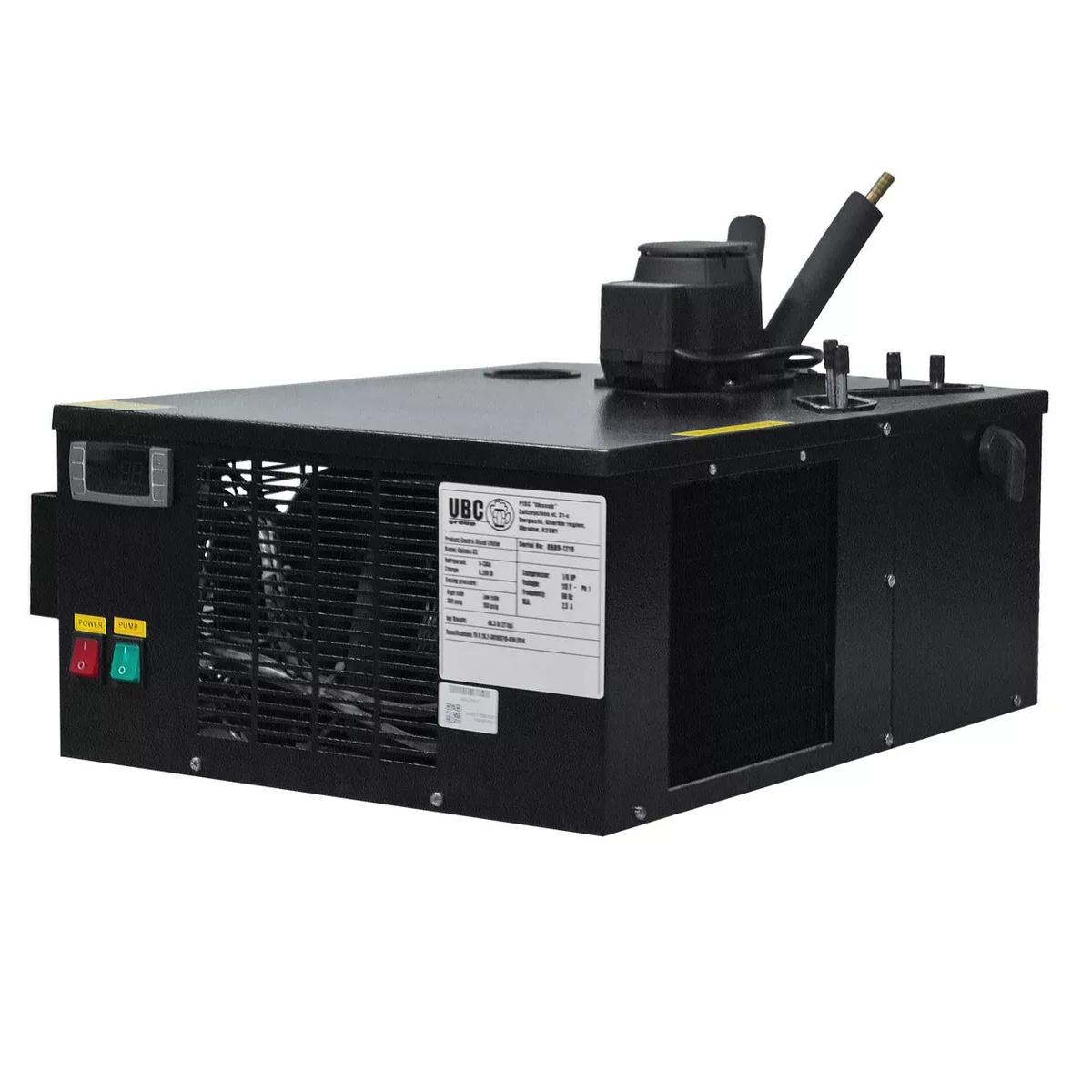

Insidebeer.com presents the KG1/6VP Glycol Chiller – an optimal solution for bars and restaurants looking to enhance their beverage dispensing systems. This small, compact chiller packs a punch, featuring a 2-gallon glycol tank, a 1/6 horsepower compressor, and a digital thermostat that enables you to regulate the temperature inside the glycol reservoir.
The KG1/6VP Glycol Chiller works on a simple principle. It has a propylene glycol bath that is continuously pumped through a looped circuit of tubing called the trunkline. The cooled liquid from this bath cools down the product line, which is a part of the trunkline when it comes into contact with it.
Using glycol flash chillers such as the KG1/6VP has several benefits. These include easy installation, low service and maintenance costs, no leaking of refrigerants, and the ability to regulate temperature on a digital thermostat. Additionally, it can be used as a pre-chiller for beer, juice, or other soft drinks.
The KG1/6VP Glycol Chiller has several key features that make it stand out. It has a maximum distance of 25 feet and a glycol tank capacity of 2 gallons. The chiller itself is small and compact, measuring 18 inches wide, 17 inches deep, and 12 inches high. It has a gross weight of 52 pounds and uses R134A / R290 refrigerant. The glycol mixture used is 40% glycol and 60% water.
Proper installation of the KG1/6VP Glycol Chiller is crucial to ensure warranty coverage. The installation must be done by a qualified installer, such as an electrician, general contractor, or heating and air conditioning specialist, who possesses a business license, contractor’s license, and/or resale permit.
Main Benefits of Flash Chillers
- Easy to install – no prior refrigeration skills required
- Low service and maintenance costs
- No leaking of refrigerants
- Temperature can be regulated on a digital thermostat
- Can be used as a pre-chiller for beer, juice, or other soft drinks
Product Highlights
- 25 ft maximum distance
- 2-gal glycol tank capacity
- Small glycol chiller (18’’ wide, 17’’ deep, 12’’ high)
- Gross weight 52 lbs
Specifications of Beer line glycol chiller KG1/6VP
- Name: KG-1/6VP
- Part Number: KG-1/6VP
- Maximum Distance, ft: up to 25′
- Capacity, BTU/hr evap 20f: 908
- Glycol Tank Capacity, gal: 2
- Dedicated Circuit, amp: 15
- Compressor Power, hp: 1/6
- Pump Type: Vertical
- Pump, GPH: 135
- Number of pre-installed pumps: 1
- Thermostat: Digital
- Refrigerant: R134A / R290
- Dimensions WxDxH, in: 17.1x18x12.9
- Weight Gross / Net, lbs: 45.4 / 52.1
- Power cord length, ft: 6
- Inlet/Outlet barb, in: 3/8
- Operating ambient temperature, F: 60-90
- Clearance at least: 12” around the entire unit
- Glycol mixture, vol%: 40 % glycol and 60% water
Installation Requirements for KG1/6VP Glycol Chiller
Proper installation of this item must be handled by a qualified installer in order to qualify for product return and/or warranty coverage. A qualified installer is defined as a licensed professional who charges a fee for his services and possesses a business license, contractor’s license, and/or resale permit. Common examples of a “qualified installer” include Electrician, General Contractor, and Heating and Air Conditioning Specialist.
If you’re looking to improve your beverage dispensing setup, the KG1/6VP Glycol Chiller is a great solution. It’s easy to install, cost-effective and has a range of features that make it perfect for bars and restaurants.
