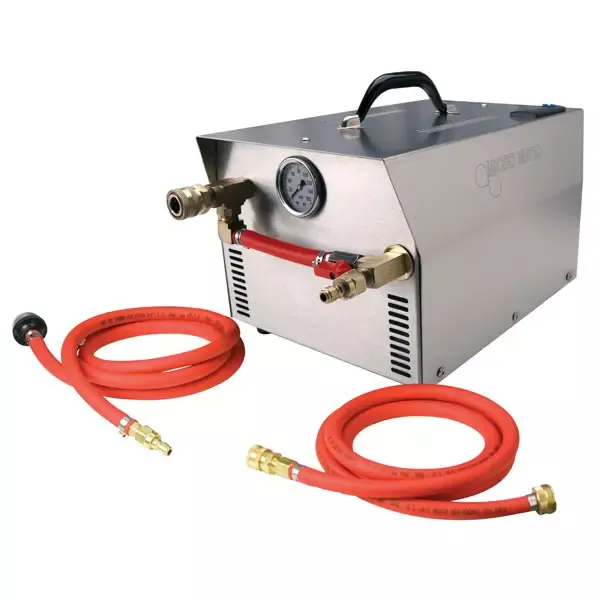

Performance at a great value for the professional line cleaner. Dependable performance for circulating cleaner on runs greater than 300′.
Re-circulating the cleaning chemicals when line cleaning is the best choice for long draw systems over 20 feet. Re-circulation creates a turbulent flow that ismore effective than simply allowing the cleaning chemical to soak in the line. Compare the results achieved when using a re-circulating pump when beer system cleaning – your customers will taste the difference!
PUMP MAINTENANCE
The EBC300PLUS line cleaning pump features an internal screen to trap contaminant particles before they would go through the pump. The screen needs to be cleaned periodically for the pump to function properly and to prolong the life of the pump.
The pump will not prime or pump if the screen is not clean.
It is recommended that the screen be a cleaned on a routine basis of every two months, or more frequently depending on pump usage and line cleaning conditions.
To service and clean the internal screen:
- Remove the red housing cover on the pump (the one with the Micro Matic logo).
- Locate the pump (the brass part hooked to the motor) and remove the large nut on the bottom of the pump.
- Removing this nut will expose the screen. Clean the screen with a brush and water.
- Reinstall the screen and replace the cover.
Specifications:
- Capable of effectively circulating runs over 300′
- Motor: 5.3 Amps, 115 volts, 60 hz
- Manual bypass valve to control pressure and flow
- Dimensions: 9″H x 10-3/4″W x 15″L
- Weight: 37 pounds
- Power Cord: Not Included
