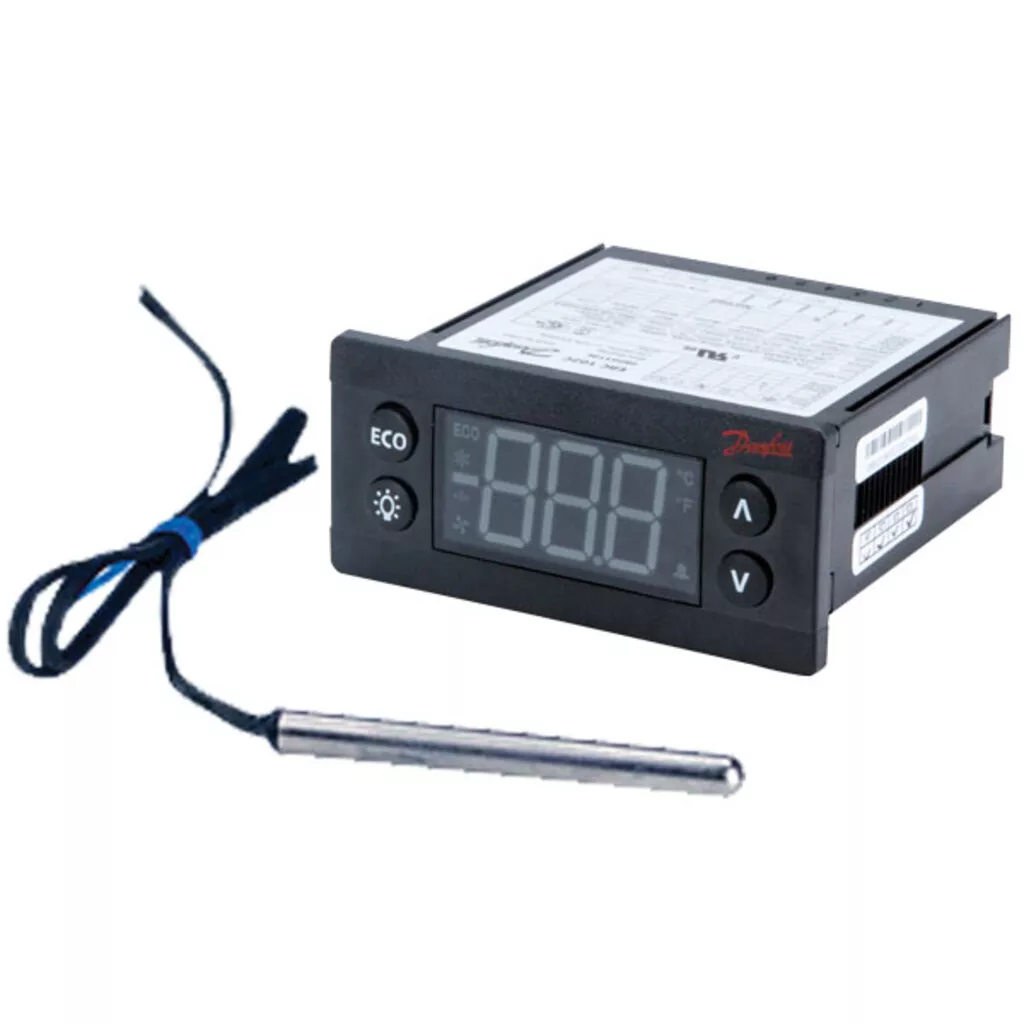

Replacement digital beer cooler thermostat for Glycol Power Pack model MMPP4301-EP, MMPP4301, MMPP4302, MMPP4303, MMPP4305, and MMPP4307 series units manufactured 2007 – current.
INSTRUCTIONS
To rewire a Danfoss digital thermostat into an old control box:
- Cut the black, white, red, and yellow wires from the old harness on the Dixell thermostat.
- Attach the yellow wire from the Danfoss thermostat to the yellow wire from the harness.
- Attach the white wire from the Danfoss thermostat to the white wire from the harness.
- Attach the black wire from the Danfoss thermostat to the black and red wires from the harness.
